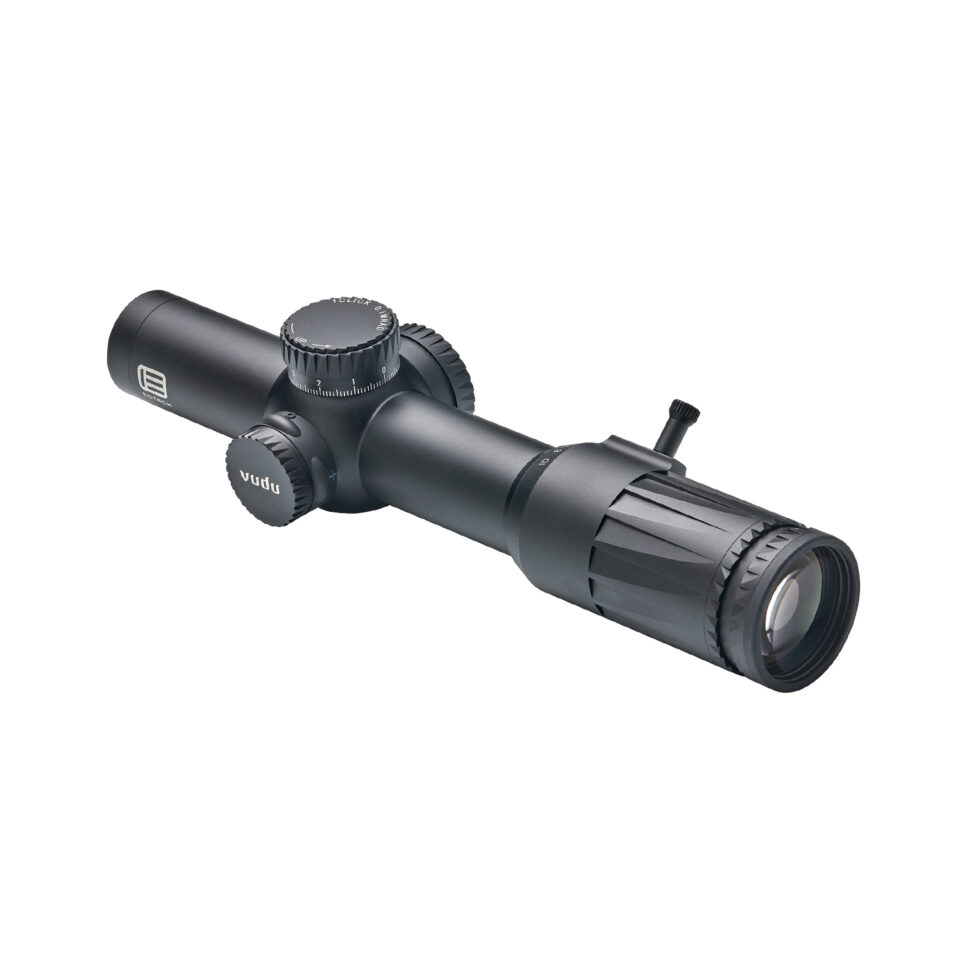

Eotech’s Vudu 1-10×28 offers a robust 34mm, one-piece aircraft aluminum tube and single-piece eyepiece that includes a removable throw-lever for fast changes in magnification. The low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero. The illuminated, glass-etched reticle and first focal plane design allows for distance estimation at any magnification and lighting condition.
Specs:
- Magnification: 1-10X
- Tube Diameter: 34 mm
- Objective Diameter: 28 mm
- Power Source: CR2032
- Eye Relief 1X: 3.27-3.90″ (83-99 mm)
- Eye Relief 10X: 3.35-3.62″ (85-92 mm)
- Overall Length: 10.63″ (270 mm)
- Weight: 21.3 oz (603 g)
Features:
- Aircraft Grade: Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push- button illumination controls for simple manipulation
- Water Resistant: The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments
- Fog Resistant: Nitrogen gas purging prevents internal fogging over the operating temperature range
- Anti-Reflective Lenses: XC high-density, low dispersion glass with anti-reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity
- Shock Resistant: The rugged design prevents damage from heavy recoil and rough handling
- Industrial Design: The sleek scalping design on the one-piece eye-piece allows for greater purchase and faster magnification adjustment and provides a removable throw lever for even better manipulation
Included in the box:
- Vudu® 1-10X28 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Lens Cleaning Cloth

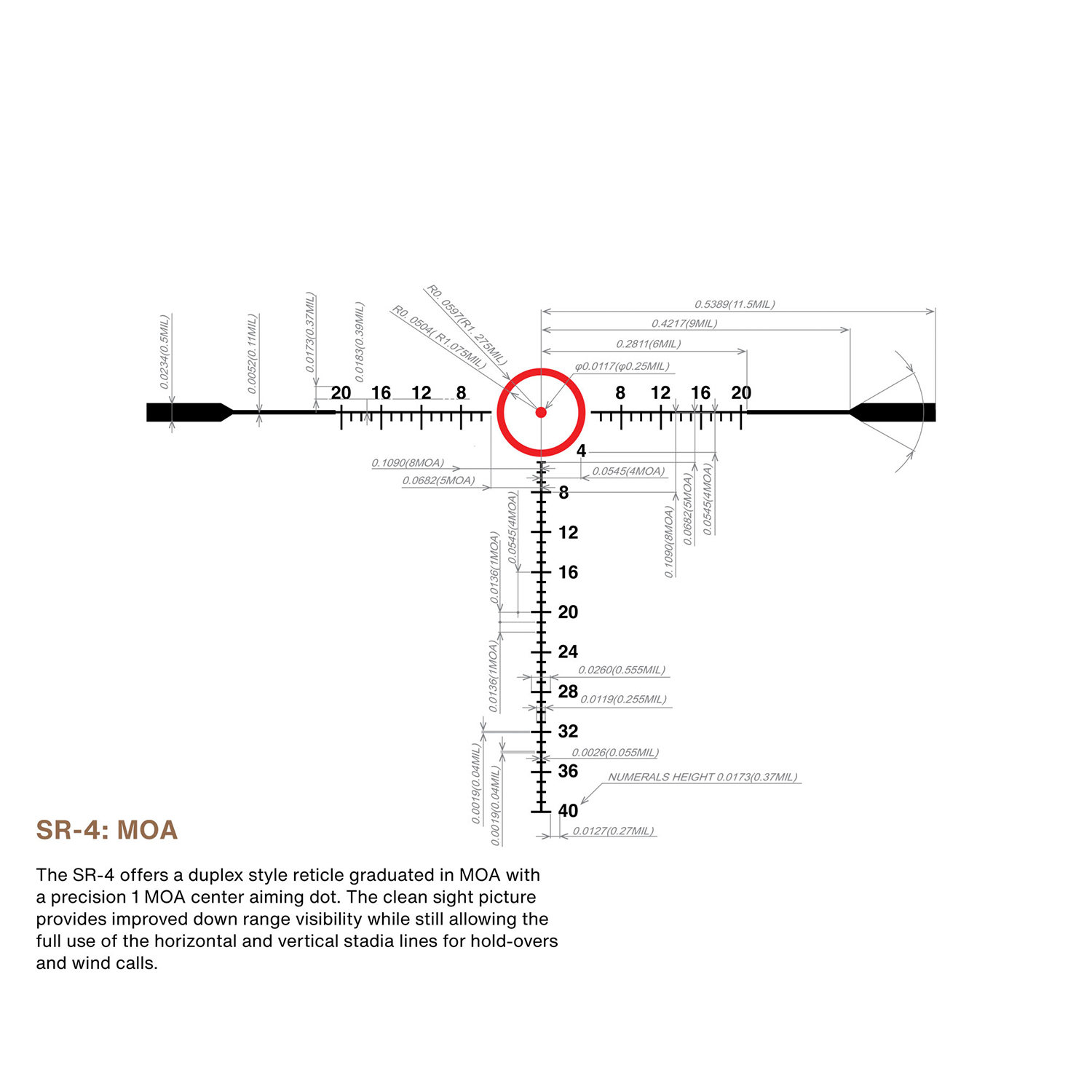

Vudu SR-4 MOA Reticle:
- The SR-4 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MOA subtension lines for ranging holdover and wind compensation. With a 1MOA center aiming dot, the clean sight picture provides improved down range visibility while still allowing the full use of the horizontal and vertical stadia lines for hold-overs and wind calls
- Adjustment Graduation Per Click: 0.25 MOA
- Adjustment Graduation Per Rotation: 40 MOA
- Total Elevation Travel: 100 MOA
- Total Windage Travel: 80 MOA
