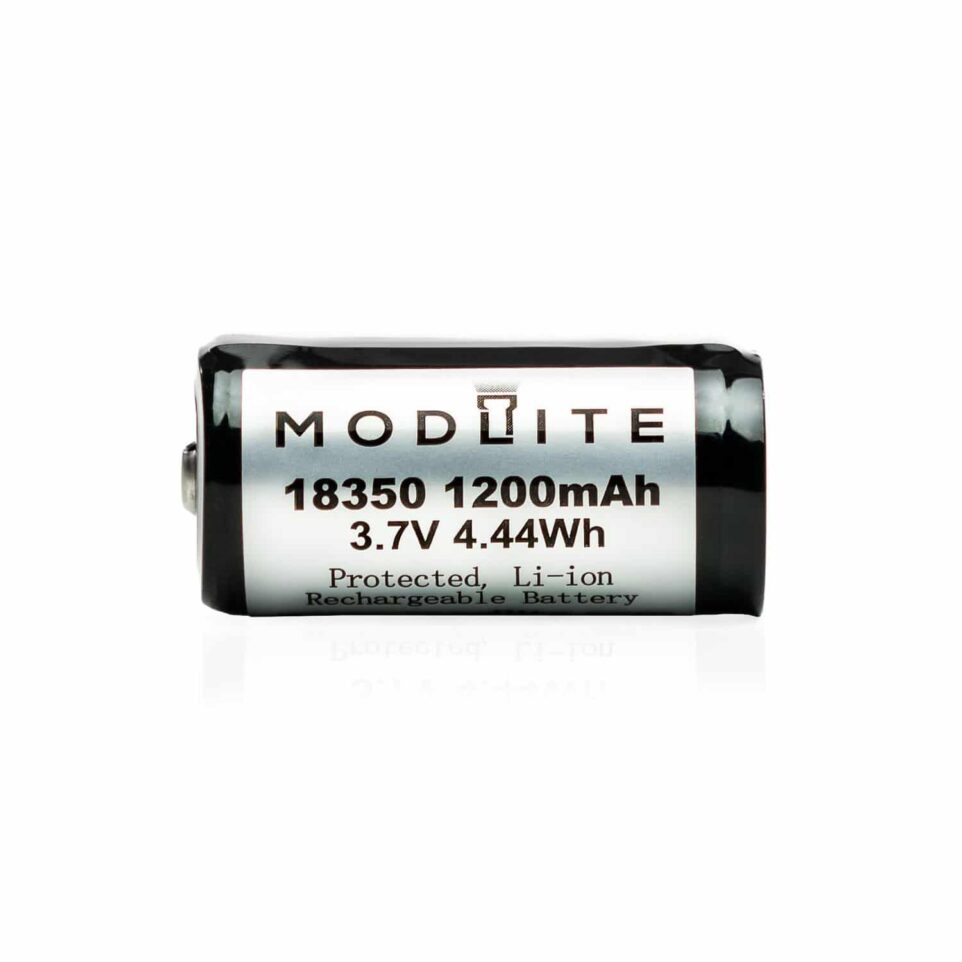

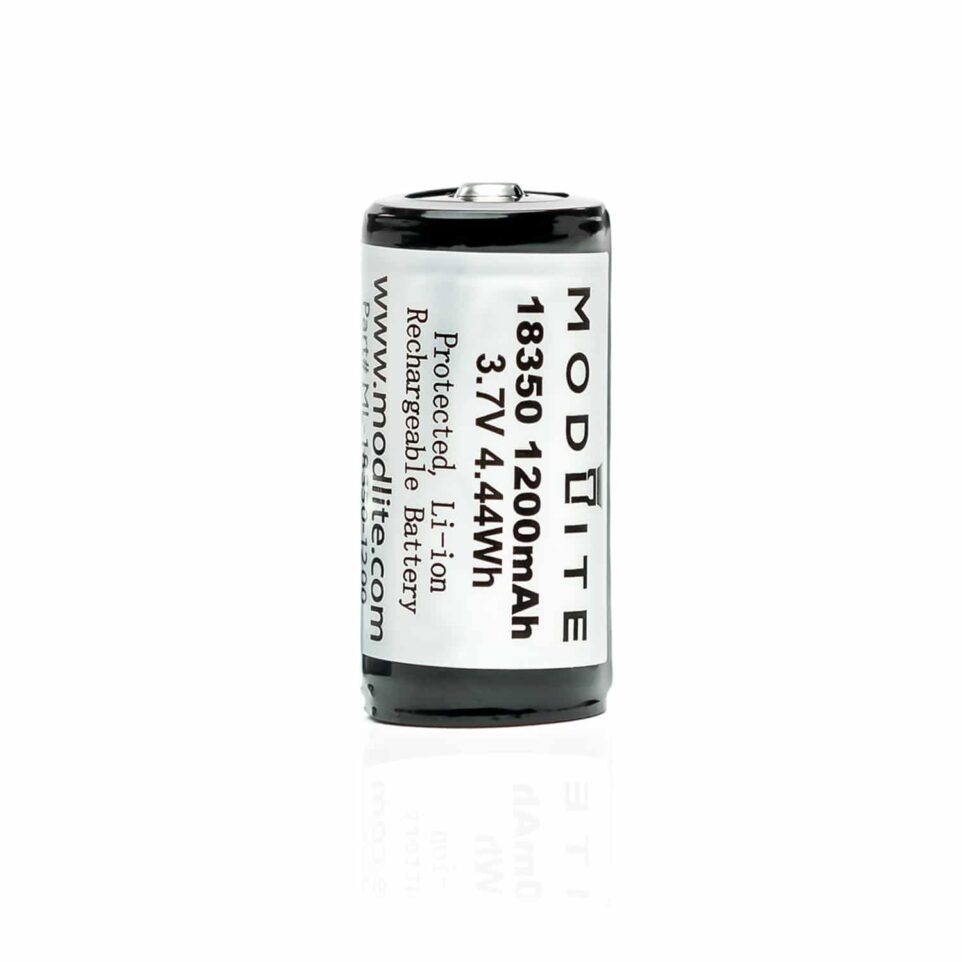

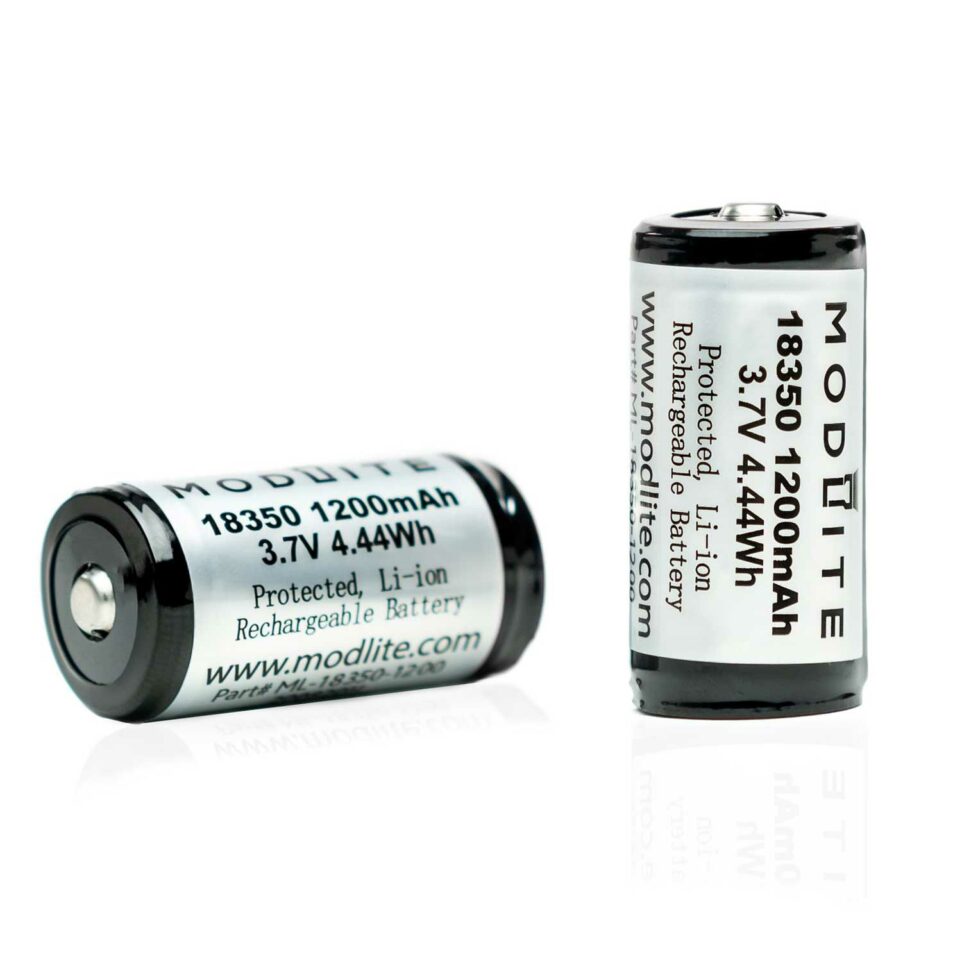

Modlite Systems 18350 1200mAh Protected Button Top

$20.00

UPC: SKU: N/A

Product Summary

These are the best batteries Modlite offers for high discharge flashlights. This is the cell Modlite recommends for the PLHv2 and OKW 18350 lights. This cell will also work with the Surefire® M600DF head on our 18350 light body.

  • Max Continuous Discharging Current: 10A.
  • Typical Capacity: 1200 mAh.
  • Style: Button Top.
  • Approximate Dimensions (including button): 38.1mm length x 18.6 mm diameter.
  • Maximum Length: 38.1mm.
  • Discharge cut-off voltage: 2.5V (approximate).
  • Voltage: 3.6V.
  • Full Charge Voltage: 4.2V.
  • Charge Current: 1.5A standard.
  • Protection Cutoff Current: ~18A.
  • Batteries are sold in pairs only.

Detailed Description

These are the best batteries Modlite offers for high discharge flashlights. This is the cell Modlite recommends for the PLHv2 and OKW 18350 lights. This cell will also work with the Surefire® M600DF head on our 18350 light body. The cell inside the battery is made by LG Chem in Korea. Modlite then added a high-quality protection PCB/BMS along with the button/nipple top in an ISO 9001 certified factory to all safety standards. A black wrap is put over the top to hold it together.

These are manufactured with a very high-quality PCB including a Japanese Ricoh protection IC for 18A high current cutoff (most PCBs will not be able to handle this much current). This protection circuit protects the battery from mishandling, overcharge, or over-discharge while allowing the battery to do its job properly.

Specs:

  • Max Continuous Discharging Current: 10A.
  • Typical Capacity: 1200 mAh.
  • Style: Button Top.
  • Approximate Dimensions (including button): 38.1mm length x 18.6 mm diameter.
  • Maximum Length: 38.1mm.
  • Discharge cut-off voltage: 2.5V (approximate).
  • Voltage: 3.6V.
  • Full Charge Voltage: 4.2V.
  • Charge Current: 1.5A standard.
  • Protection Cutoff Current: ~18A.
  • Batteries are sold in pairs only.

Specifications

Overview

Brand

Technical Information

Voltage

3.6V

Capacity

1200 mAh
