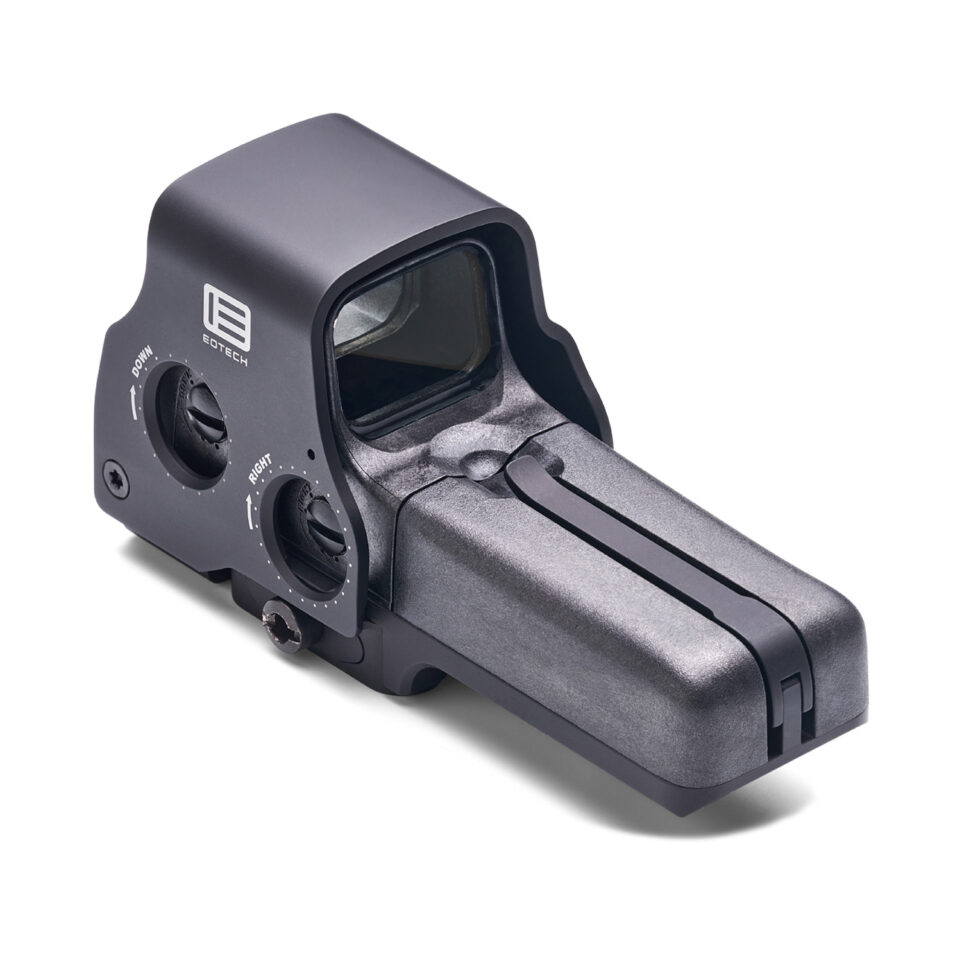

EOTech HWS 518 Holographic Weapon Sight – Red Dot

Original price was: $625.00.Current price is: $595.00.

Swatch image 68 MOA Ring - 1 MOA Dot

Product Description

With the HWS 518™, the best just got better. Get all of the features found in EOTech’s top sight, the EXPS, but with easy-to-find AA batteries. The 518 has buttons on the side that allow the user to position it close to the magnifier to reduce rail space.

Included in the box:

  • HWS 518™
  • Quick-Start Guide
  • Warranty Card
  • 2x AA Alkaline Batteries
  • Protective Case


  • Dimensions: 5.6″ x 2″ x 2.9″ (142.2 x 55.9 x 73.7 mm).
  • Weight: 13.8 oz (391.2 g).
  • Water-Resistant: 10ft. (3 m) depth.
  • Mount: 1″ Weaver or MIL-STD-1913 rail.
  • Windage & Elevation Adjustment: 0.5 MOA per click.
  • Brightness: 20 daylight settings.
  • Power Source: 2 x 1.5 V AA batteries – Supports lithium, alkaline, or rechargeable.
  • Battery Life:
    • Lithium: 2,500 continuous hours at nominal setting 12 at room temperature.
    • Alkaline: 2,200 continuous hours at nominal setting 12 at room temperature.
  • Operating Temperature: -40°F to 140°F (-40°F to 60°F).
  • Made in the USA.

EOTech One Dot Reticle:
EOTech’s most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the operator will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.

The standard ring found in most reticles equates to approximately 68″ (5’8″) at 100 yards.

The 518™ HWS offers multiple brightness settings offering quick adjustability to accommodate any shooting situation.
