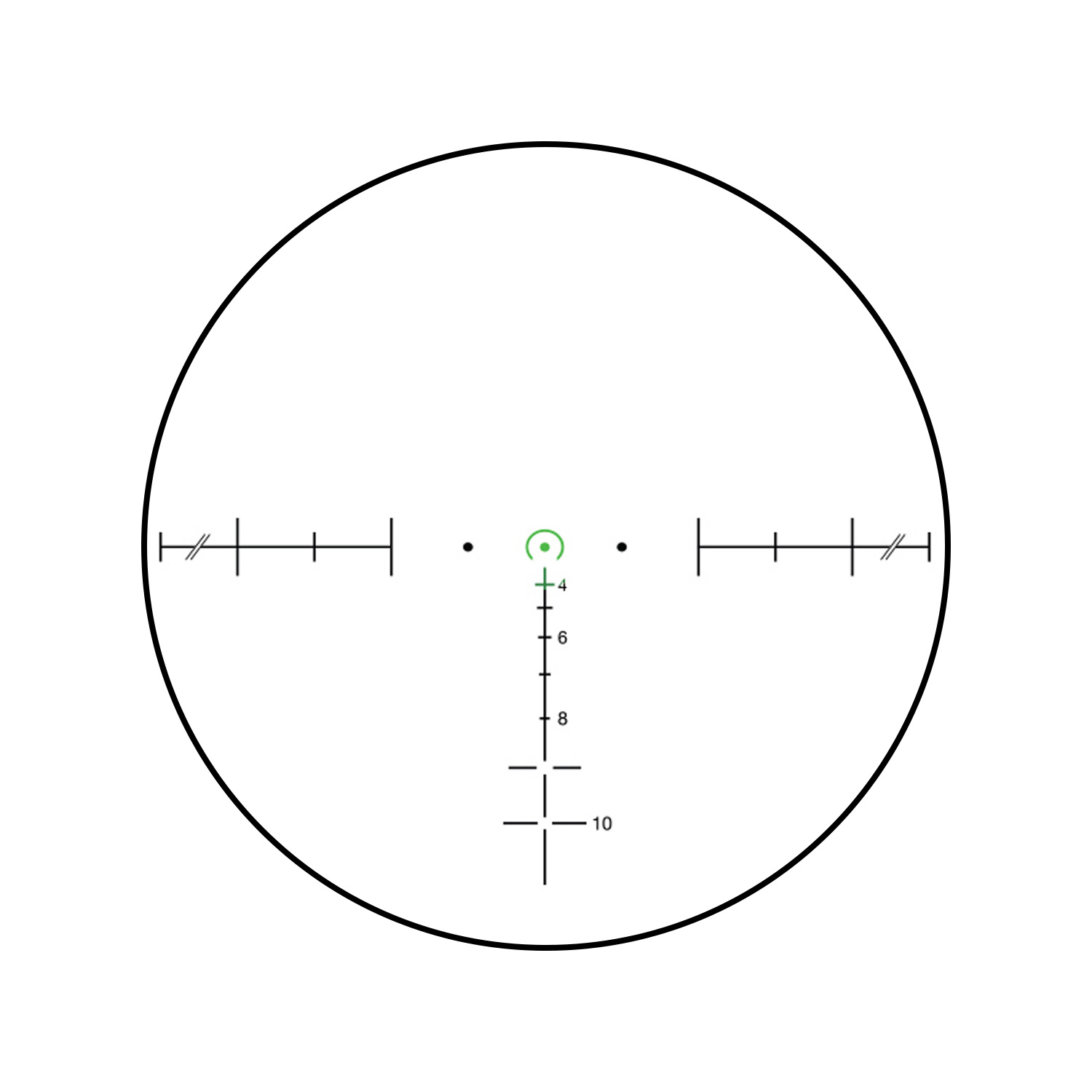

ACOG 3.5×35 scope with Target Reference System— The ranging reticle is calibrated for 5.56 (.223 cal) flat-top rifles to 1000 meters and 7.62(.308 cal) flattop rifles out to 1200 meters. Includes Flat Top Adapter. Daytime illumination is provided by fiber optics while Tritium illuminates the scopes at night.
ALWAYS ON, ALWAYS READY
Most ACOG® models are battery-free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.
TAKE CONTROL
Several ACOG models are designed with a user-adjustable brightness setting powered by a single AA battery. The 3.5×35 LED and 4×32 LED models both offer six adjustable brightness settings.
RUGGED, RELIABLE HOUSING DESIGN
Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
“BOTH EYES OPEN” DESIGN
“Both eyes open” shooting using Trijicon’s Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.
OUTSTANDING CLARITY
The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
EXACT TARGET DISTANCES & HOLDS
Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
COMBAT PROVEN
No other magnified optic has been used more in combat than the ACOG.
SHOCK-RESISTANT
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
WATERPROOF
Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.
Specs:
- Length x Width x Height: 8 in x 2.1 in x 2.9 in (203.2mm x 53.34mm x 73.66mm)
- Weight: 17.6 oz. (498.95g)
- Magnification: 3.5x
- Objective Size: 35mm
- Bullet Drop Compensating (BDC): Yes
- Caliber: .223 / 5.56 or .308 / 7.62
- Illumination Source: Fiber Optics & Tritium
- Power Source: Fiber Optics & Tritium
- Adjustment: ½ MOA per click
- Eye Relief: 2.4 in. (60.96mm)
- Exit Pupil: 0.39 in. (9.91mm)
- Field of View (degrees): 5.5°
- Field of View (feet): 28.9 ft. @ 100 yds. (9.63m @ 100m)
- Mount: Flattop Thumbscrew Mount (TA51)
- Housing Material: Forged Aluminum
- Finish: Matte Black
INCLUDES:
- Thumbscrew Flattop Adapter (TA51)
- 3.5×35 Scopecoat (TA63)
- LENSPEN (TA56)
- Lanyard Assembly for Adjuster Caps (TA71E)
- Trijicon Logo Sticker (PR15)
- ACOG BAC Manual
- Warranty Card
